"Watch What
I Do" Chapter 13

#
Chapter

13

#
The Geometer's Sketchpad:

Programming by Geometry

##
R. Nicholas Jackiw

and

William F. Finzer

###
Introduction

Think about relationships: "Clark is a friend of Janet," "The picture is
fastened to the wall," "Mount Mitchell is one hundred feet higher than
Clingman's Dome." Knowledge of relationships is a key to problem solving.
Providing knowledge of relationships to a computer learning environment enables
the computer to become an effective partner in the problem solving process.
Central issues in the design of such environments involve how we inform the
computer of relationships relevant to the problem at hand, and how the computer
exploits these relationships.
A particular problem solving domain is considered here -- Euclidean geometry.
In this domain, the objects of concern are points, lines, and circles, and
relationships in this realm are spatial; for example, "perpendicular to," "at
the intersection of," and "with radius equal to." We explore the process of
expressing geometric relationships visually and by demonstration. We call this
process "sketching" and develop through it a notion of "spatial programming."

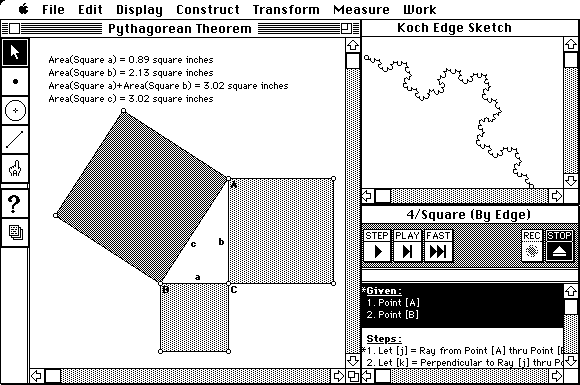

The specific application considered here is *The Geometer's Sketchpad*[1], an environment for exploring geometry now
being used in thousands of high school mathematics classrooms. The primary
purpose of GSP's ongoing development is the resolution of real-world issues
surrounding the learning of geometry. It is surprising to find that this
practical focus leads to a theoretically interesting conception of users
programming by demonstration. Because in GSP there is no distinction between
the geometric content domain and the spatial programming domain, students using
it encounter programming as the central activity. The distinction between
programmer and user disappears; the two coalesce into one -- the student.

#
The Geometer's Sketchpad

##
Uses and Users

**Application domain: **Euclidean geometry
**Intended users: **Students

##
User Interaction

**How does the user create, execute and modify programs? **

The user creates a program by making a geometric construction. It is also possible to turn on a recording mode and give an example of a geometric construction, which can then be replayed in the context of different objects.

Programs are debugged by dragging objects into different configurations to test their behavior for different "inputs". Constraints can be added or removed at any time.

##
Inference

**Program constructs: **Variables, procedures with parameters,
recursion
##
Knowledge

**Types and sources of information: **

Knowledge about geometry. For instance, lines, rays, and line segments are all "straight objects".##
Implementation

**Machine, language, size, date: **1991.
